AN ISO-9001-2008 CERTIFIED COMPANY

Mild Steel General Purpose

24 CARAT

A General Purpose Welding Electrode for Smooth Weld Deposits.

Codification
Characteristics & Applications :

24 CARAT is a medium coated, Rutile type, General purpose welding electrodes designed to produce evenly rippled, smooth weld-beed on mild steel jobs. It produces a shining weld deposit with reasonable spatters good striking/restriking properties and easier operation in all conventional welding positions. 24 CARAT can be used either on AC. welding machines with an Open Circuit Voltage of not less than 50 Volts or Direct Current with positive/negative polarity.

24 CARAT is ideal for all fabrication jobs, structural work of building, ships, storage tanks, bridges, railway coaches/\wagons etc.

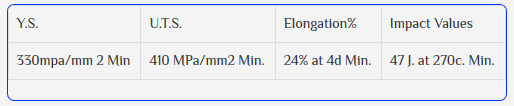

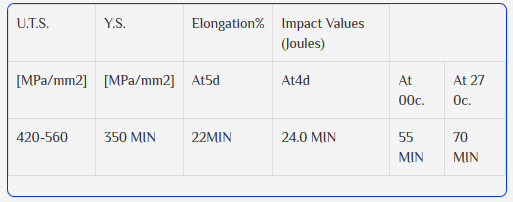

Mechanical Properties of Weld Deposit ( Undiluted)

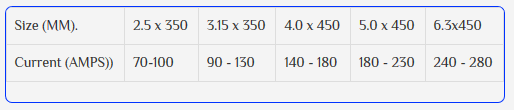

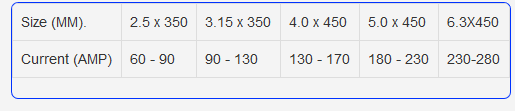

Current Requirments : AC/DC
Precautions :
  • Always run the electrodes within the specified current range.
  • Store the welding consumables in a dry place only
  • Parent metal should be free from all sorts of surface contaminations, like dirt, grease rust etc.

K-CORD

Rutile Based General Purpose Welding Electrode for Radiographic Welds.

Codification
Characteristics & Applications :

K-CORD is a medium coated rutile type electrode for general purpose welding of Mild Steel, light and medium fabrication works of Radiographic quality. Smooth and steady arc, uniform ripples and shining weld beed, easy slag detachability, excellent striking and restricking properties are the salient features of K-Cord. It can be used on AC/DC (-) on all conventional welding positions. Ideally suited for light and medium fabrications, structures, welding of storage tanks, window grills and gates, auto bodies.

Mechanical Properties of Weld Metal

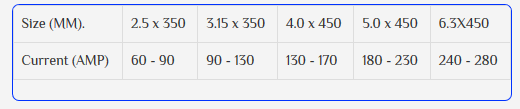

Current Requirments : AC/DC (-) (OCV 50 V Min.)

KAYNOZ-7

Rutile type general purpose welding electrode.

Codification
Characteristics & Applications :

KAYNOZ - 7 is a general purpose, Rutile type, medium coated welding electrode for mild steel. Stable arc which is easy to strike & restrike, Moderately fluid molten metal,easily detachable slag, finely rippled beed and least spatters are the salient features of kaynoz-7. Weldmetal exhibits excellent mechanical properties in its class of electrodes.lt can be used to weld any type of fabrication work, Machinary construction, furniture, pipelines, wagons & coaches, bridges, ships, tanks, trailers, automobile chassis & several other jobs. It can be used in all posiions.

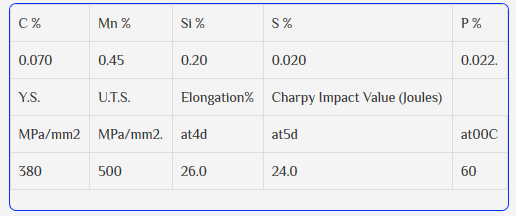

Mechanical Properties of Weld Metal

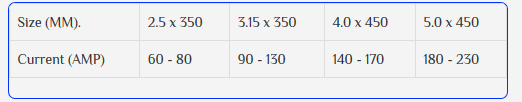

Current Requirments : AC/DC (+) (OCV 50V Min.)

KAYNOZ-7-S

Excellent welding electrode for radiographic weld deposits on mild steels.

Codification
Characteristics & Applications :

KAVNOZ -7-S is a medium coated, Rutile type, general purpose electrode designed to produce excellent Radiographic quality weld-beed on mild steel jobs. It produces a shining weld deposit with a minimum spatter level with other characteristics of welder's choice, i.e. effortless slag removal and easier operation in all conventional welding positions (FHVO). KAYNOZ-7-S can be used either on A C. welding machines with an Open Circuit Voltage of not less than 50 Volts or Welding ractifier with positive or negative polarity.

KAYNOZ-7-S is Ideal for all fabrication jobs, structural works of boilers, ships, storage tanks, bridges, railway coaches! wagons.

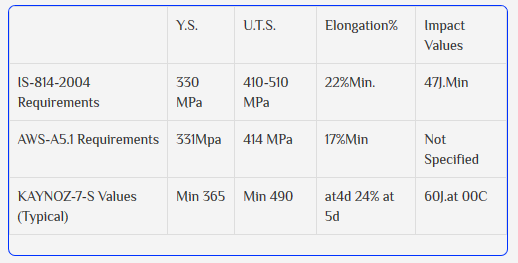

Mechanical Properties of Weld Metal

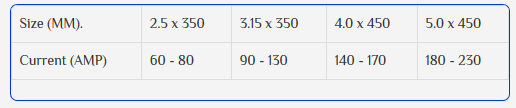

Current Requirments : AC /DC ( 50 V OCV Min. )
Precautions :
  • Always run the electrodes within the specified current range.
  • *Store the welding consumables in a dry place only.
  • *Parent metal should be free from all sorts of surface contaminations, like dirt, grease rust etc.

KAYNOZ-7-SS

Excellent heavy coated welding electrode for radiographic weld deposits on heavy sections..

Codification
Characteristics & Applications :

KAYNOZ -7-SS is a heavy coated, Rutile type, general purpose electrode designed to produce excellent Radiographic quality weld-beed on mild steel jobs. It produces a shining weld deposit with a minimum spatter level with other characteristics of welder's choice, i.e. effortless slag removal and easier operation at all conventional welding positions (FHVO). KAYNOZ-7-SS can be used either on AC. welding machines with an Open Circuit Voltage of not less than 50 Volts or Welding ractifier with positive or negative polarity..

KAYNOZ-7-SS is Ideal for all fabrication jobs, structural works of boilers, ships, storage tanks, bridges, railway coaches! wagons.

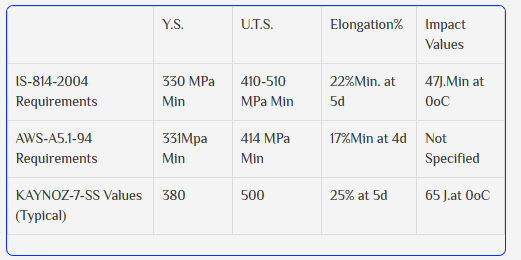

Mechanical Properties of Weld Metal
Current Requirments : AC/DC (-) (OCV 50 V Min.)
Precautions :
  • Always run the electrodes within the specified current range.
  • Store the welding consumables in a dry place only.
  • Parent metal should be free from all sorts of surface contaminations, like dirt, grease rust etc.
